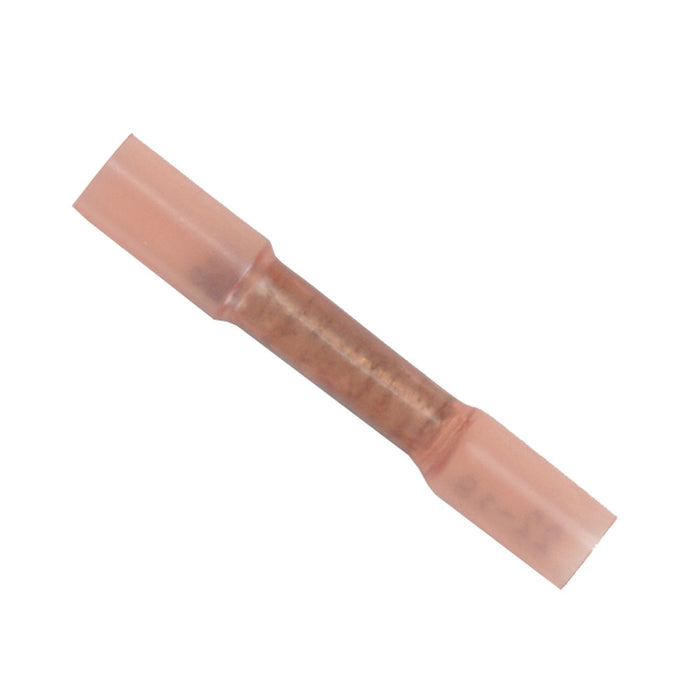

Ancor 22-18 Heatshrink Butt Connectors - 25-Pack [309025]

by Ancor
Save $7.02 Save $7.02
Original price $24.97
Original price $24.97 - Original price $24.97
Original price $24.97
Current price $17.95
$17.95 - $17.95
Current price $17.95

22-18 Heatshrink Butt Connetors - 25-Pack

Guage Size: 22-18
Quantity: 25

Product Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire range: 22-18
  • mm: 0.3 - 0.8

    WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Gauge: 22-18 AWG
    • Heat Shrink: Yes
    • Type: Butt Connectors
    • Package Qty: 25
    • Box Dimensions: 1"H x 4"W x 4"L WT: 0.2 lbs
    • UPC: 091887303421

    Quick Guide (pdf)
