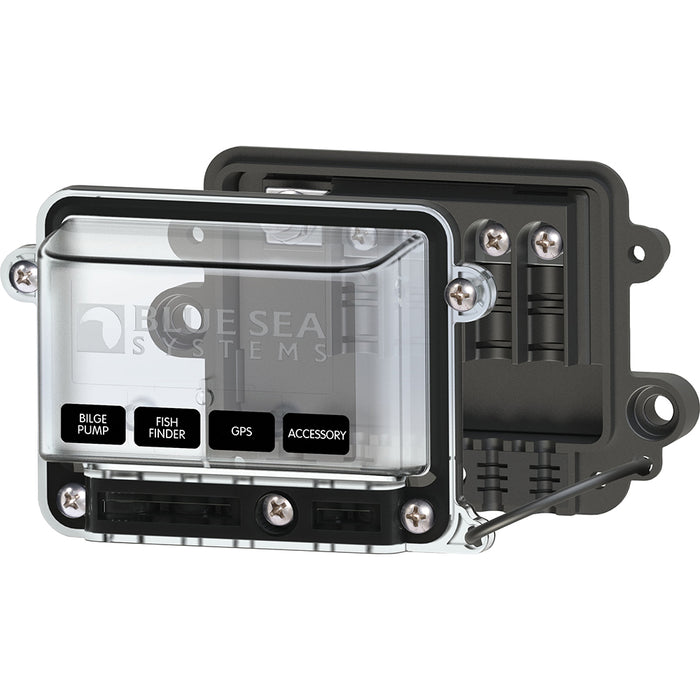

Blue Sea 2356 Water Resistant BusBar - 100 Amp w/Cover [2356]

Save $6.64 Save $6.64
Original price $37.59
Original price $37.59 - Original price $37.59
Original price $37.59
Current price $30.95
$30.95 - $30.95
Current price $30.95

2356 Water Resistant BusBar - 100 Amp with Cover

Provides secure water-resistant bussing for harsh environments. The single side nesting design allows for wire entry from one side to maximize space.

Features:

  • Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools.
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain water-resistant rating if less than 4 wires are used
  • Nests with other Water-Resistant 100A Common BusBars and ST-Blade Water-Resistant Fuse Block for space saving wiring
  • Ideal for positive distribution and for the collection of negative or AC ground circuits
  • Insulating cover meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Small format standard and custom labels available

Specifications:

  • Cover: Yes
  • Maximum Voltage: 300V AC/48V DC
  • Continuous Rating: 100A AC/100A DC
  • Bus Material: Tin-Plated Copper C11000
  • Mounting Holes: Accepts 1/4" (6mm) Screws
  • Terminal Screw: 4 x #8-32
  • Terminal Stud: 1 x #10-32
  • Wire Size: (1) 8 AWG to 4 AWG - Input/(4) 16 AWG to 10 AWG - Load
