Hawkeye DepthTrax In-Dash Digital Depth Temp Gauge - Transom Mount [DT2BX-TM]

by HawkEye
Save $2.04 Save $2.04
Original price $139.99
Original price $139.99 - Original price $139.99
Original price $139.99
Current price $137.95
$137.95 - $137.95
Current price $137.95

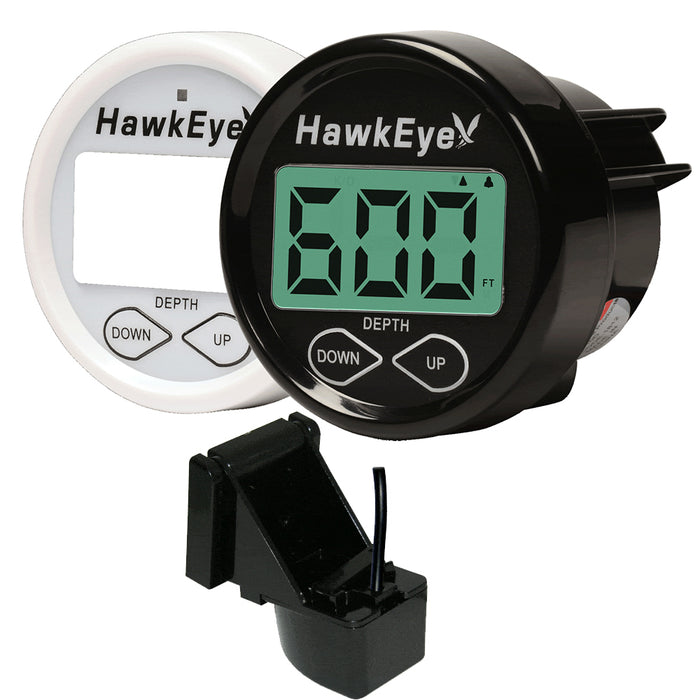

DepthTrax In-Dash Digital Depth & Temp Gauge - Transom Mount

The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR®, ultra-sensitive, high-performance transom mount transducer.  With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.

The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.

Features:

  • Algorithmic programming significantly reduces false readings and produces unmatched precision
  • EasyTouch programming allows one-touch access to the user settings
  • User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
  • Selectable Imperial or Metric readout
  • Dual Upper and Lower depth alarms can be set throughout the full depth range
  • 3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
  • Displays air & water temperature in °F or °C
  • Automatic memory retention of all user settings
  • Removable face system - includes White & Black faceplates and White/Black trim rings
  • No glare, polarized LCD icon display with storage sun cover
  • SoftGlow™ backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing

Technical Specifications:

  • Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)
  • Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)
  • Gauge Cut-out Size - 2"
  • Operating Temperature - 0 to 160° F (-18 to 71°C)
  • Depth Range - 2.5' to 600' (.7 to 180 M)
  • Transducer Type - Transom Mount
  • Transducer Frequency - 200kHz
  • Transducer Beam Angle - 14°
  • Transducer Cable Length - 30' (9 M)
  • Power Requirement - 12 - 14 VDC

In the Box:

  • Gauge
  • Bezel/Faceplate - Black and White
  • Display cover
  • Mounting hardware
  • Transducer - transom mount w/30' cable
  • Instruction manual

*Sold as an Individual

Specifications:

  • Box Set: No
  • Gauge Size: 2"
  • Gauge Type: Depth Sounder
  • Voltage - Input Range (Volts): 12 - 14
  • Box Dimensions: 4"H x 7"W x 7"L WT: 2.4 lbs
  • UPC: 818800103919

Owner's Manual (pdf)
