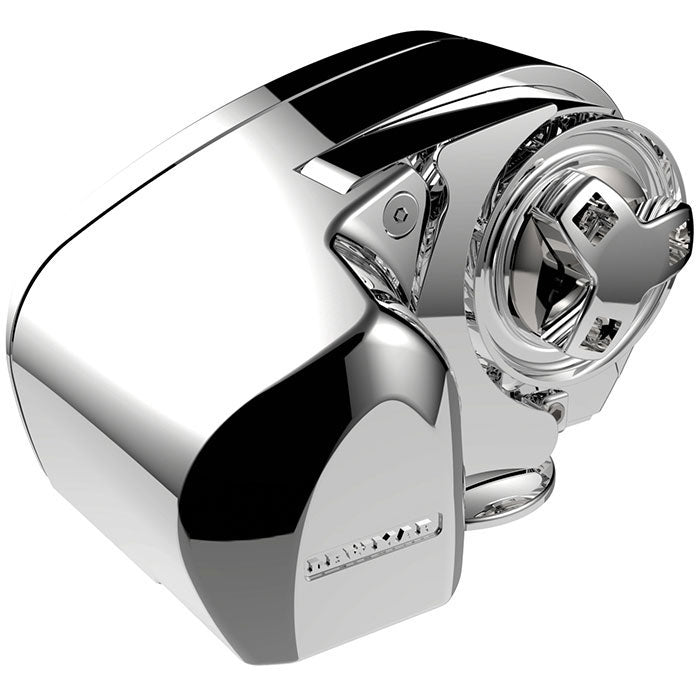

Lewmar 6657011108-102 Pro-Series 1000H Horizontal Windlass Kit

Lewmar 6657011108-102 Pro-Series 1000H Horizontal Windlass Kit

by Lewmar
Save $651.00 Save $651.00
$2,069.95
$2,069.95 - $2,069.95
$2,069.95
$1,418.95
$1,418.95 - $1,418.95
$1,418.95
Lewmar Pro-Series 1000H Windlass is simply the professionals' choice. These lewmar windlasses are chosen by more boat builders than any other manufacturer. The Pro-Series is deisgned for easy installation and the housing is made from 100% 316 Stainless Steel, making the product well protected and durable. For additional ease of use, the Pro-Series has a Manual Recovery system built in.

Specifications:

  • Chain Size: 5/16" HT
  • Rope Size: 9/16" or 5/8" 3-strand or 5/8" 8-plait
  • Motor Voltage: 12 Volt DC
  • Power Consumption: 700 Watts
  • Current Draw: 50 Amp
  • Circuit Breaker: 70 Amp
  • Max. Pull: 1000 lbs
  • Boat Size: 27 to 38 ft. LOA
  • Max. Working Load: 250 lbs
  • Rode Release: Power up / down
  • Retrieval Speed: 88 ft. / min.
  • Material: 100% 316 stainless steel (including control arm and stripper)
  • Dimensions: 5-3/4" x 9-5/8" x 7"
  • Warranty: 5 years


Pro-Series 1000H Windlass Features:
  • Pro-Series Windlass
  • Powerful Fast Line Speed Motor
  • Maximum Pulling Power: 1000lbs
  • 1/2"(12mm) Socket Wrench
  • Made of 316 Stainless Steel Material
  • 516 Gypsy For 5/16" G G4 Chain & 9/16" Line
  • Convenient Above Deck Installation
  • For Boats up to 20-45 ft

    In the Box:
    • Windlass
    • Base Gasket Seal
    • Fast Mounting Studs
    • Installation Wrench
    • Rocker Switch
    • Contactor & Circuit Breaker
