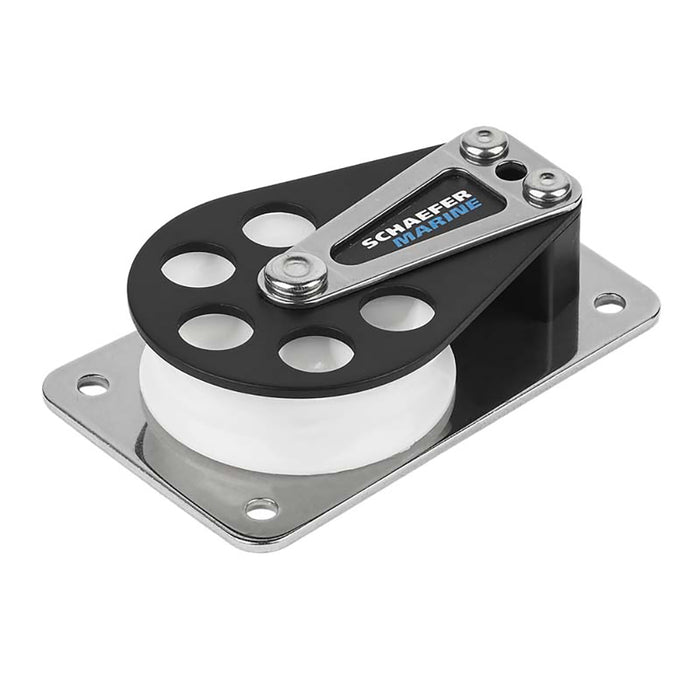

Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

Schaefer Series 5 Flat Base/Alum Cheek/Delrin Sheave [504-11]

by Schaefer Marine
Save $20.95 Save $20.95
$98.90
$98.90 - $98.90
$98.90
$77.95
$77.95 - $77.95
$77.95

Series 5 Flat Base/Alum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Diameter 2" (51 mm)
  • Max. Line 7/16" (11 mm)
  • Length 3-5/8" (92 mm)
  • Width 2-7/32" (57 mm)
  • Height 7/8" (22 mm)
  • Fasteners (4) #10 RH (5 mm)
  • C/C 3" (76 mm)
  • SWL 1750 lbs. (795 kg)
  • Weight 5.9 oz. (167g)
  • Max. Line 7/16" (11mm)
