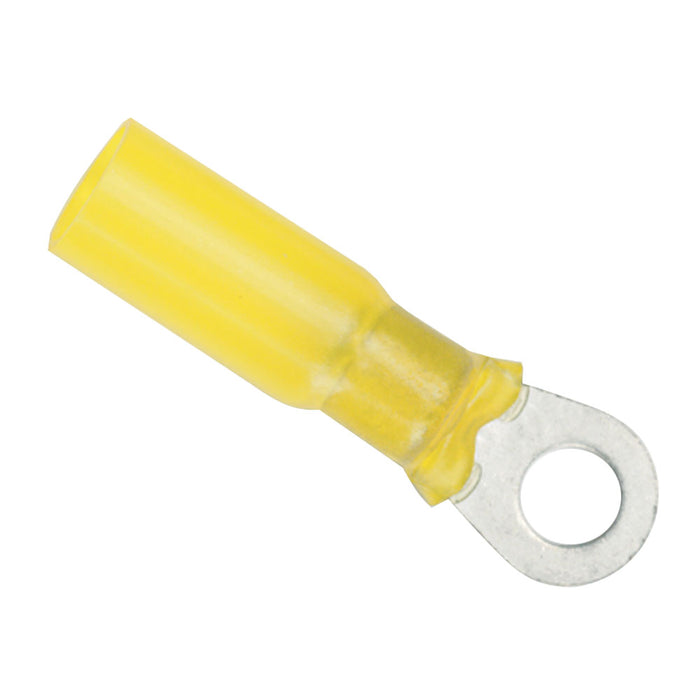

Ancor 12-10 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack [312603]

by Ancor
Save $1.24 Save $1.24
Original price $5.19
Original price $5.19 - Original price $5.19
Original price $5.19
Current price $3.95
$3.95 - $3.95
Current price $3.95

12-10 Gauge - 3/8" Heat Shrink Ring Terminal - 3-Pack

Gauge Size: 12-10
Screw Size: 3/8"
Quantity: 3

Product Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief
  • Nylon insulator, preferred by experts, for Marine Grade™ resistance to sunlight, water, oil, chemicals, vibration and cut-through damage
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size
  • Shrinks at 257° F/125° C
  • Operating temperature range 40° C to 110° C
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief
  • Tinned for corrosion resistance
  • Pure copper for maximum current flow
  • Brazed seam for maximum strength

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Gauge: 12-10 AWG
  • Type: Ring Terminals
  • Post Size: 3/8"
  • Package Qty: 3
  • Heat Shrink: Yes
  • Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs
  • UPC: 091887316209

Quick Guide (pdf)
