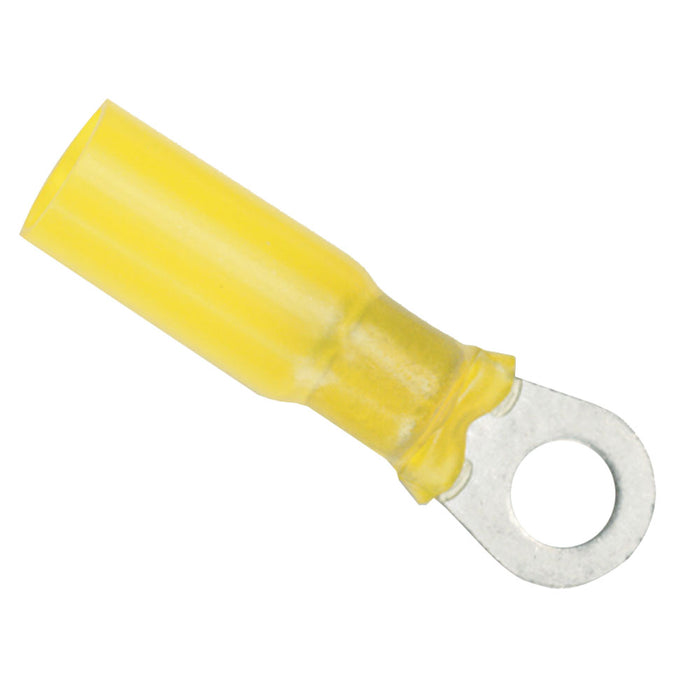

Ancor 12-10 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack [312203]

by Ancor
Save $1.24 Save $1.24
Original price $5.19
Original price $5.19 - Original price $5.19
Original price $5.19
Current price $3.95
$3.95 - $3.95
Current price $3.95

12-10 Gauge - #8 Heat Shrink Ring Terminal - 3-Pack

Gauge Size: 12-10
Screw Size: #8
Quantity: 3

Product Features:

  • Cross Linked polyolefin tubing is much stronger than PVC tubing and will not burn like PVC.
  • Heat activated adhesive lining provides impervious seal to salt water, oil, acids, and sunlight as well as providing strain relief.
  • Nylon insulator, preferred by experts, for Marine Grade resistance to sunlight, water, oil, chemicals, vibration and cut-through damage.
  • UL Listed and CSA Recognized
  • Highest shrink ratio - shrinks to 1/3 original size.
  • Shrinks at 257 deg. F/125 deg. C.
  • Operating temperature range 40 deg. C to 110 deg. C.
  • ANCOR heat shrink connectors offer heat activated adhesive built into the sleeve of the heat shrink tubing
  • Shrinks to form a water tight seal and the ultimate vibration and strain relief.
  • Tinned for corrosion resistance.
  • Pure copper for maximum current flow.
  • Brazed seam for maximum strength.
  • Wire Range: 12-10
  • mm: 3-5
  • WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Heat Shrink: Yes
    • Type: Ring Terminals
    • Post Size: #8
    • Package Qty: 3
    • Gauge: 12-10 AWG
    • Box Dimensions: 1"H x 1"W x 1"L WT: 0.1 lbs
    • UPC: 091887316025

    Quick Guide (pdf)
