Blue Sea 8074 AC Main +8 Positions Toggle Circuit Breaker Panel - White Switches [8074]

Save $213.61 Save $213.61
Original price $699.56
Original price $699.56 - Original price $699.56
Original price $699.56
Current price $485.95
$485.95 - $485.95
Current price $485.95

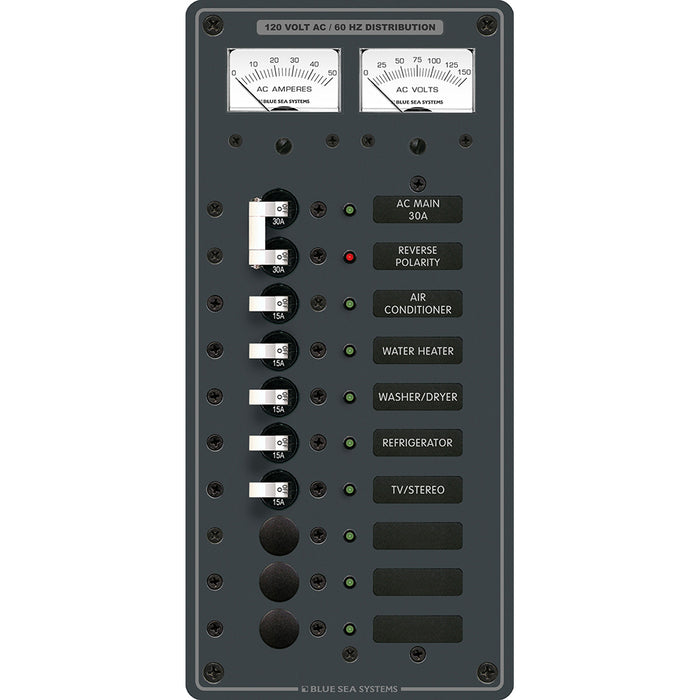

8074 AC Main +8 Positions Toggle Circuit Breaker Panel - White Switches

Features:

  • Red reverse polarity indicating LED
  • All hot, neutral and safety ground buses installed, fully pre-wired
  • Label backlighting pre-installed
  • All LEDs installed
  • 9353, 0-150 Volt AC Voltmeter
  • 9630, 0-50 Amp AC Ammeter
  • Maximum panel Amperage - 50 Amperes
  • 1 30A Double Pole Circuit Breaker
  • 5 15A Single Pole Circuit Breakers
  • 120 Volt

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • AC/DC: AC
  • Max Breaker Quantity: 8
  • Voltage: 120v
  • Box Dimensions: 5"H x 10"W x 13"L WT: 3.3 lbs
  • UPC: 632085080747

Owner's Manual (pdf)
