OceanLED Discover Series D3 Underwater Light - Ultra White with Isolation Kit [D3009WI]

Save $46.45 Save $46.45
Original price $318.40
Original price $318.40 - Original price $318.40
Original price $318.40
Current price $271.95
$271.95 - $271.95
Current price $271.95

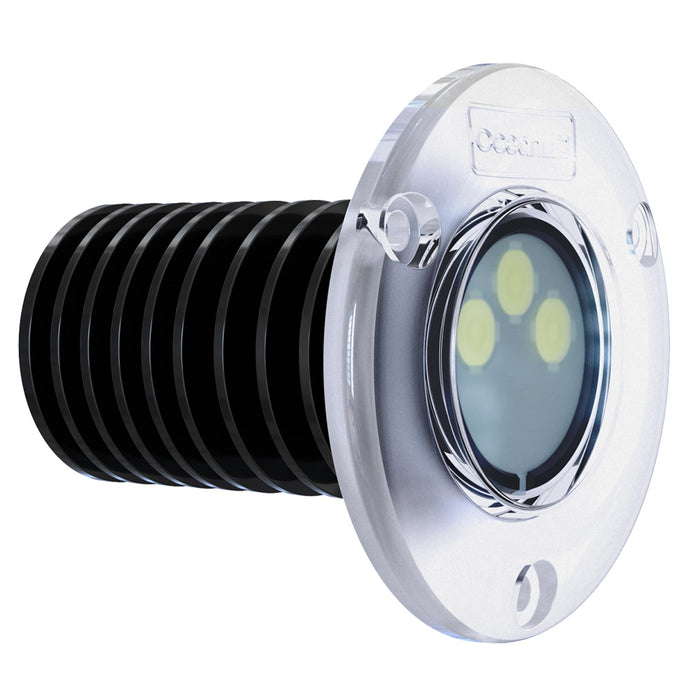

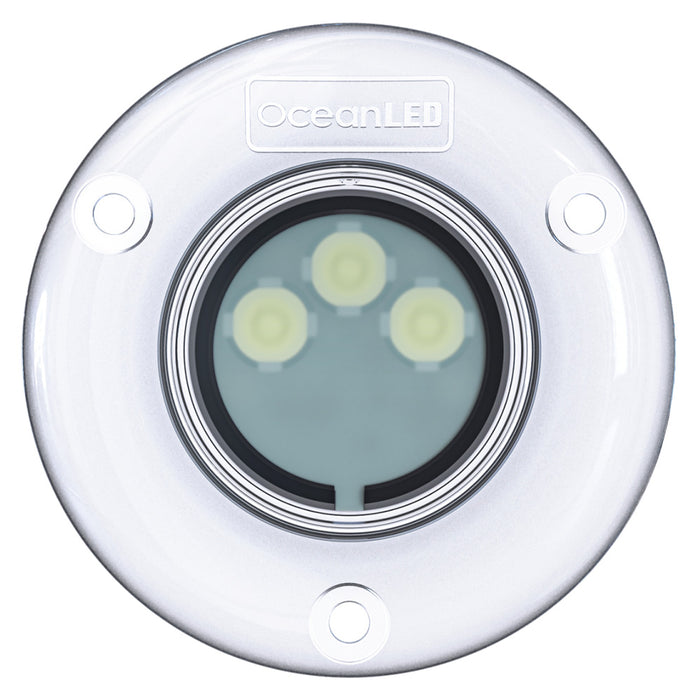

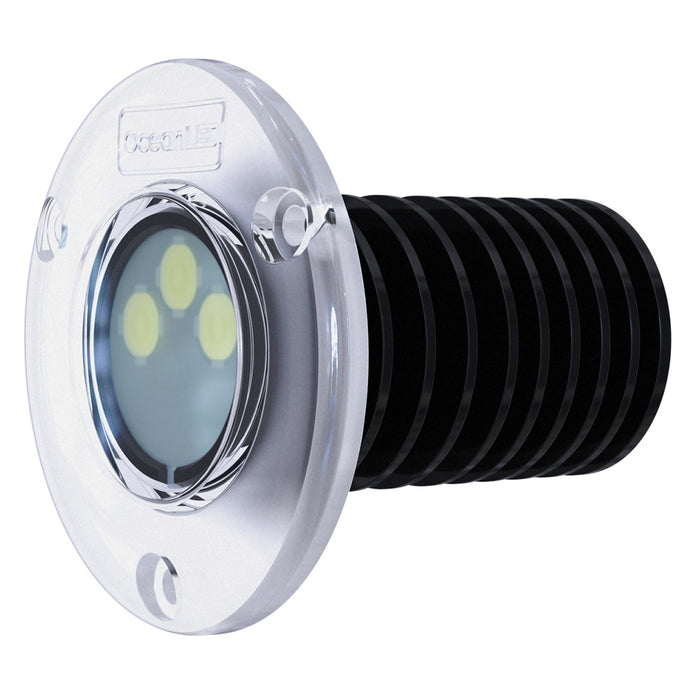

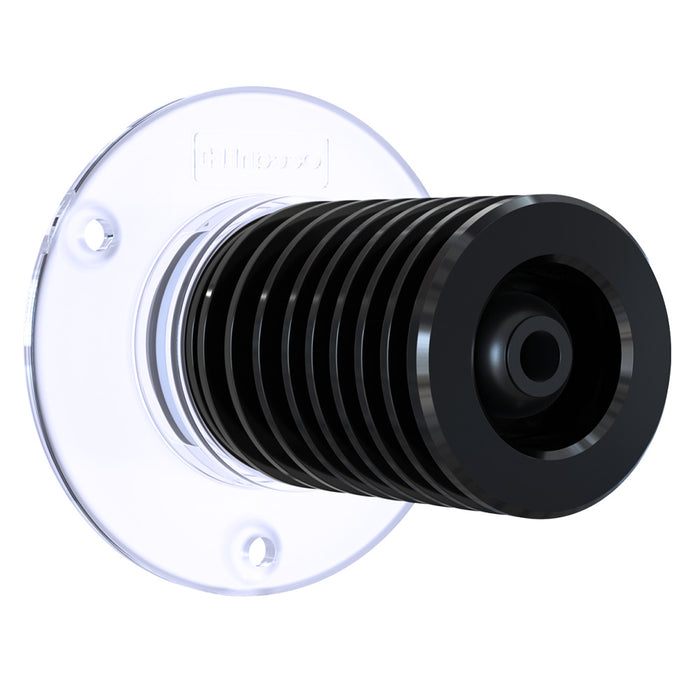

Discover Series D3 Underwater Light - Ultra White with Isolation Kit

The Discover Series D3 underwater LED light from OceanLED, is ideal for boats that want to discover the many benefits of underwater lighting.

Superior Protection, Total Peace of Mind

The Discover D3 is rated at IP69k, the highest achievable rating of protection against water ingress. IP69k goes one step further than the industry standard IP68, giving you additional protection and peace of mind. The rear of the light is protected from in-hull temporary submersion for boats where rough seas and waves sometimes flood the stern.

Compact Design

The D3’s compact dimensions make it ideal for tight-fitting areas or smaller boats.

Advanced Signature Optics - Wide Surface Beam

The Discover D3 benefits from OceanLED’s signature optics (90° x 20°), producing an unrivaled optimal lighting effect.

Advanced Signature Optics - Narrow side Beam

The OceanLED signature optics produce a narrow side beam, that has a minimal light loss, focusing the beam where you need it and penetrating further through the water.

Control your lights

Control your Discover D3 lights via the 3rd party switch or push button of your choice. Consult the installation manual for more information.


  • 700 Fixture lumens
  • 90° Top Beam
  • Elliptical Beam Shape
  • 20° Side Beam
  • IP69k Protection
  • Compact size for tight spaces and smaller boats
  • Rear Submersion Protection
  • Can be used above water


  • Color: White
  • Material: Anodized Aluminum
  • Mounting Style: Thru-Hull
  • Box Dimensions: 4"H x 4"W x 4"L WT: 0.6 lbs
  • UPC: 5051803008361

Quick Guide (pdf)
Owner's Manual (pdf)
