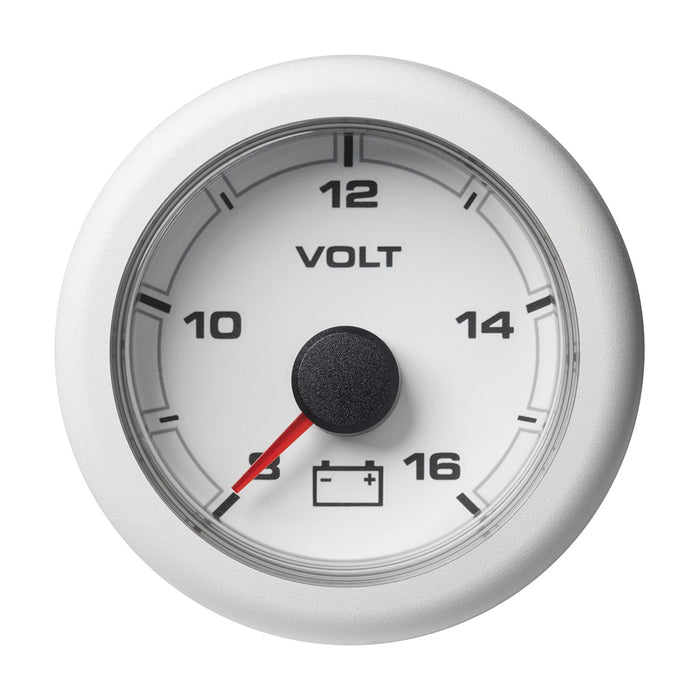

Veratron 52MM (2-1/16") OceanLink Battery Voltage Gauge - 8 to 16V - White Dial Bezel [A2C1066110001]
52MM (2-1/16") OceanLink Battery Voltage Gauge - 8 to 16V - White Dial & Bezel
OceanLink 52 mm Vessel Status Gauges are connected directly to any OceanLink Master unit using the patented EasyLink serial bus connection. Up to 16 EasyLink gauges for each Tachometer or GPS Speedometer can be daisy-chained together.
Interchangeable bezel option.
- AMP Superseal Easylink
- 270° pointer deflection angle
- Reverse polarity protection
- Anti-fog double lens
- Front & rear protection rating IPX5
- Operating temperature range -20 °C / +70 °C
- Nominal voltage - 12/24V
- Hole diameter - 52MM
In the Box:
- Rubber Seal
- Installation Instructions
- Safety Instructions
*Sold as an Individual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
- Voltage - Input Range (Volts): 12/24 V
- Gauge Size: 2-1/16"
- Box Set: No
- Gauge Type: Battery Condition
- Series: OceanLink
- Box Dimensions: 4"H x 5"W x 6"L WT: 0.35 lbs
- UPC: 7640178721418
