Wichard U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32" [06514]

Save $9.85 Save $9.85
Original price $31.80
Original price $31.80 - Original price $31.80
Original price $31.80
Current price $21.95
$21.95 - $21.95
Current price $21.95

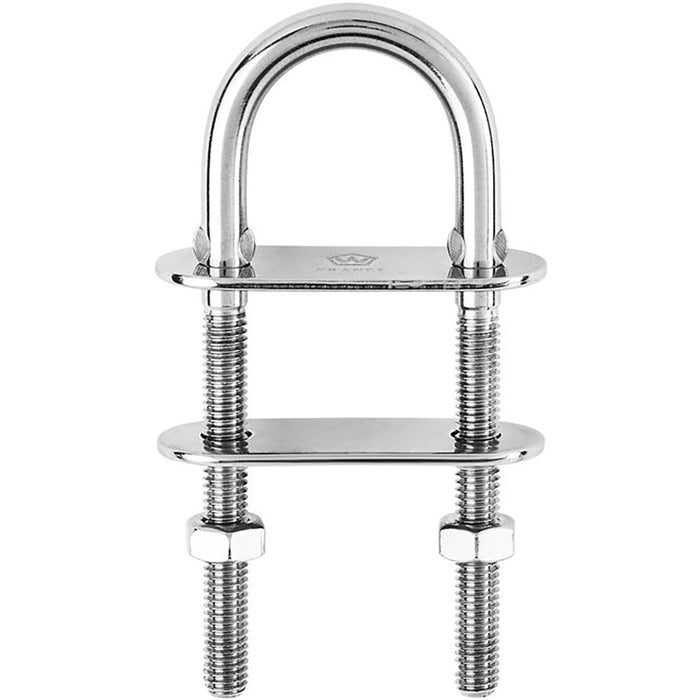

U-Bolt Pad Eye - 8mm Diameter - 5/16" - 80mm Length - 3-5/32"

Features:

  • Fully drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any kind of fastening applications (shrouds, lifelines, blocks...)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 18 mm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 10580 / (kg) 4800
  • Weight: (lb) 0.251 / (g) 114

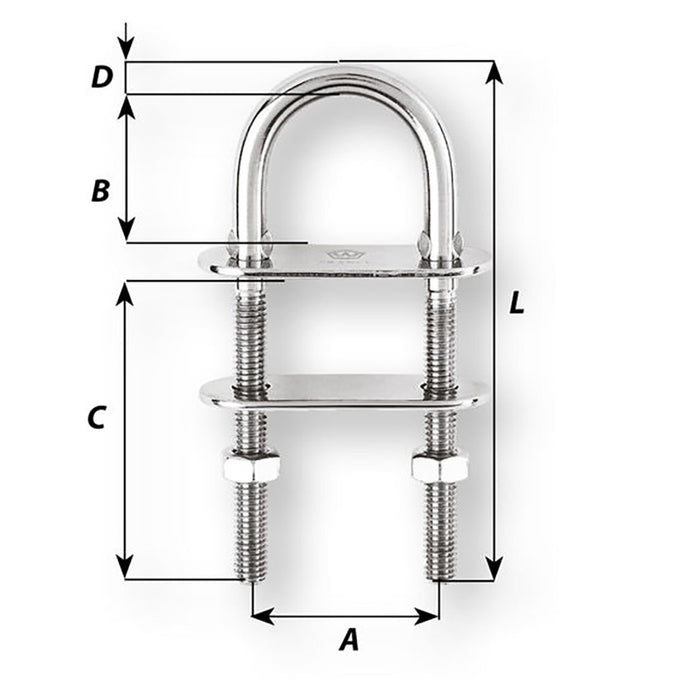

Dimensions:

  • A: (inch) 1 27/64" / (mm) 36
  • B: (inch) 1 3/16" / (mm) 30
  • C: (inch) 1 37/64" / (mm) 40
  • D diameter: (inch) 5/16" / (mm) 8
  • Length: (inch) 3 5/32" / (mm) 80

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual


Quick Guide (pdf)
